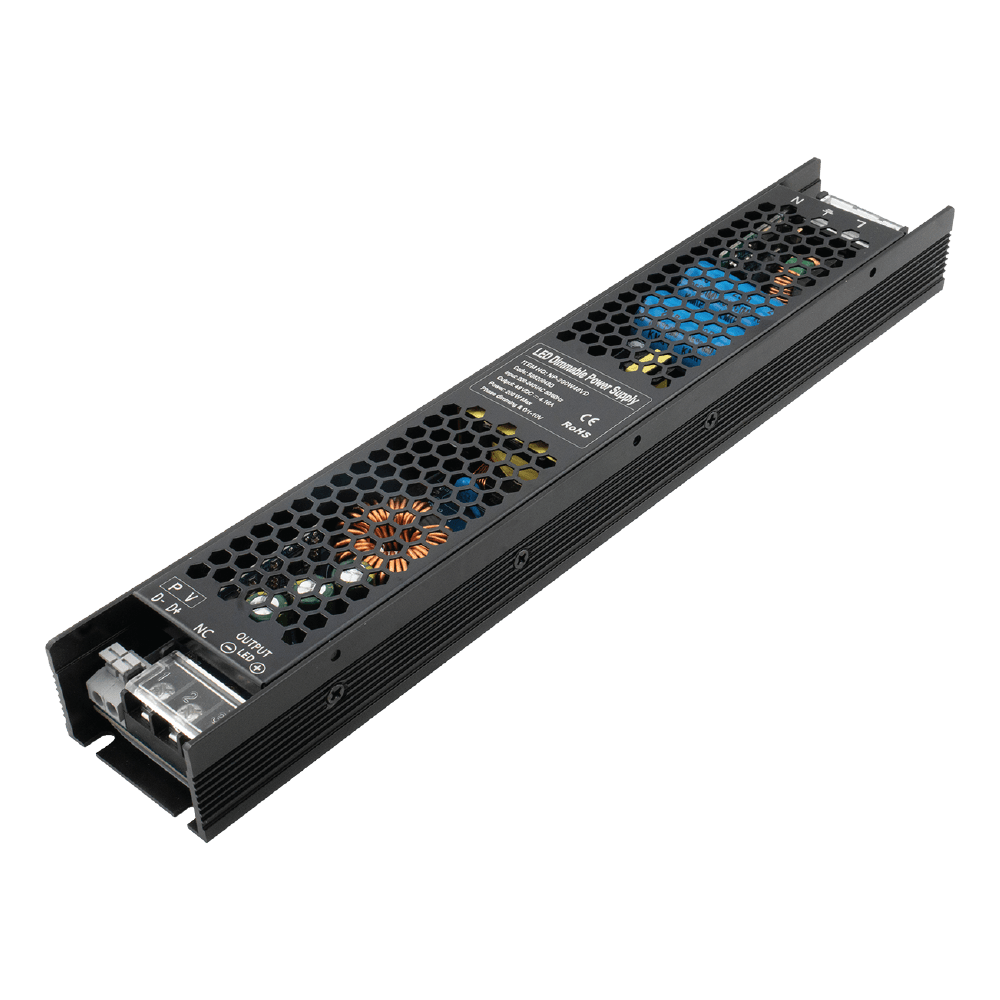

Item No: 50820048D
| Caption | The value |
|---|---|
| Rated Power | 200W |
| Rated Output Voltage | 48V |
| Output Current | ~4.16A |
| Typical Efficiency | 85% |
| Rated Lifetime | 15000 h |
| Ambient Temperature | -20~50°c |
| Setup And Rise Time | 1.5s, 20ms@230Vac |
| Dimension | W49 L287 H29 mm |
| Dimming | Yes |
Features
- Aluminum casing.
- Ultra-light easy to install.
- High efficiency up to 85%.
- High reliability .
- Wide input Voltage 200 ~ 240Vac.
- Ambient Temperature (Ta) (-20~50°c)
- Protection Characters :
- Overload Protection: 110%~ 150% of rated load.
- Short Circuit Protection: Protection Type: Hiccup mode, Auto-recovery.
Areas of application
- General indoor illumination.
- Decorative illumination.
- Private living areas.

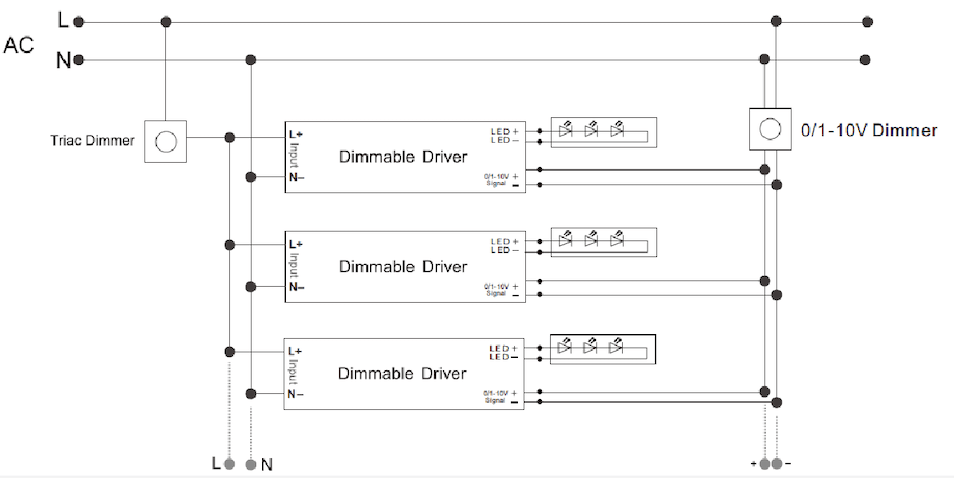

DIMMING OPERATION
Suggested Installation Areas
