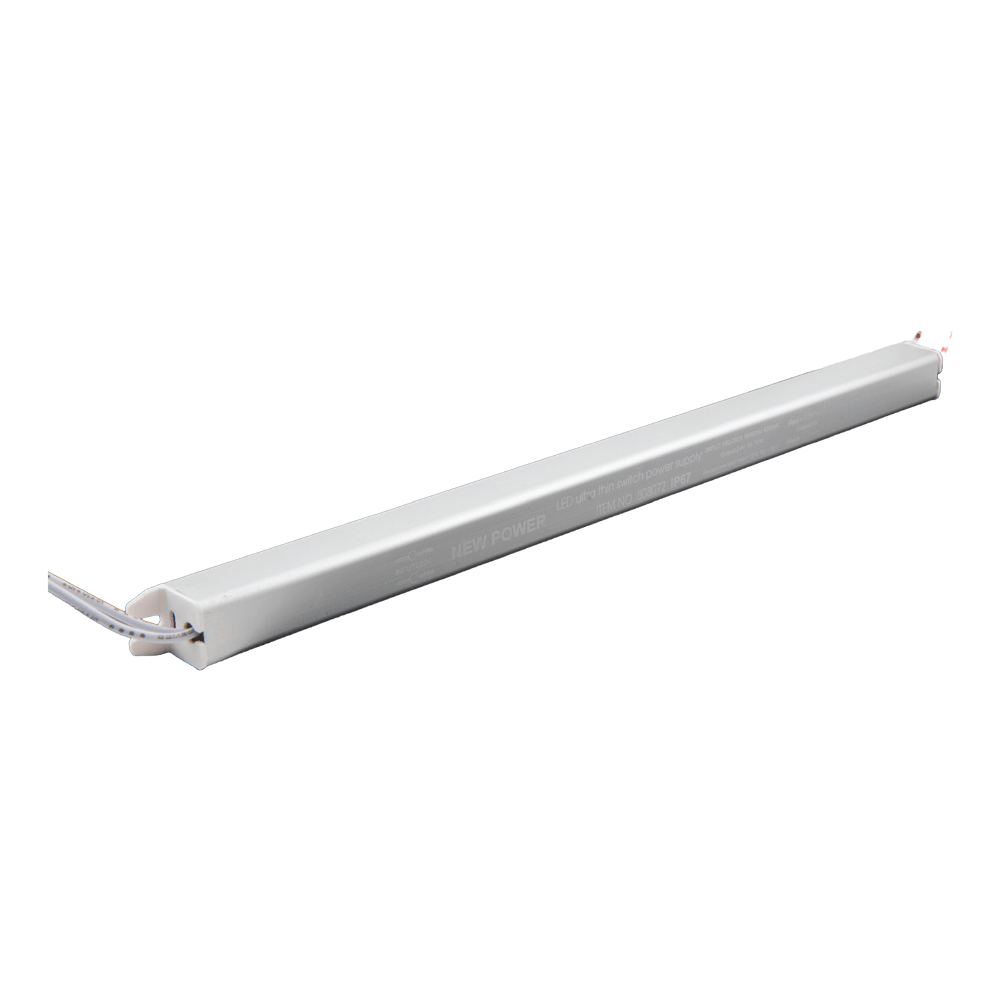

Item No: 508072
| Caption | The value |
|---|---|
| Rated Power | 72W |
| Rated Output Voltage | 24V |
| Output Current | 0~2.5A |
| Typical Efficiency | 85% |
| Rated Lifetime | 15000 h |
| Ambient Temperature | -30~60°c |
| Setup And Rise Time | 1.5S , 20mS@230Vac |
| Dimension | W18 L375 H18 mm |
| Dimming | NO |
Features
- Aluminum casing.
- Ultra-light easy to install.
- High efficiency up to 85%.
- High reliability .
- Wide input voltage 180 ~ 264Vac.
- Ambient Temperature (Ta) (-30 ~ 60°c).
- Protection Characters :
- Overload Protection: 110%~ 150% of rated load.
- Short Circuit Protection: Protection Type: Hiccup mode, Auto-recovery.
Areas of application
- General indoor illumination.
- Decorative illumination.
- Private living areas.
Units parts diagram
Suggested Installation Areas
