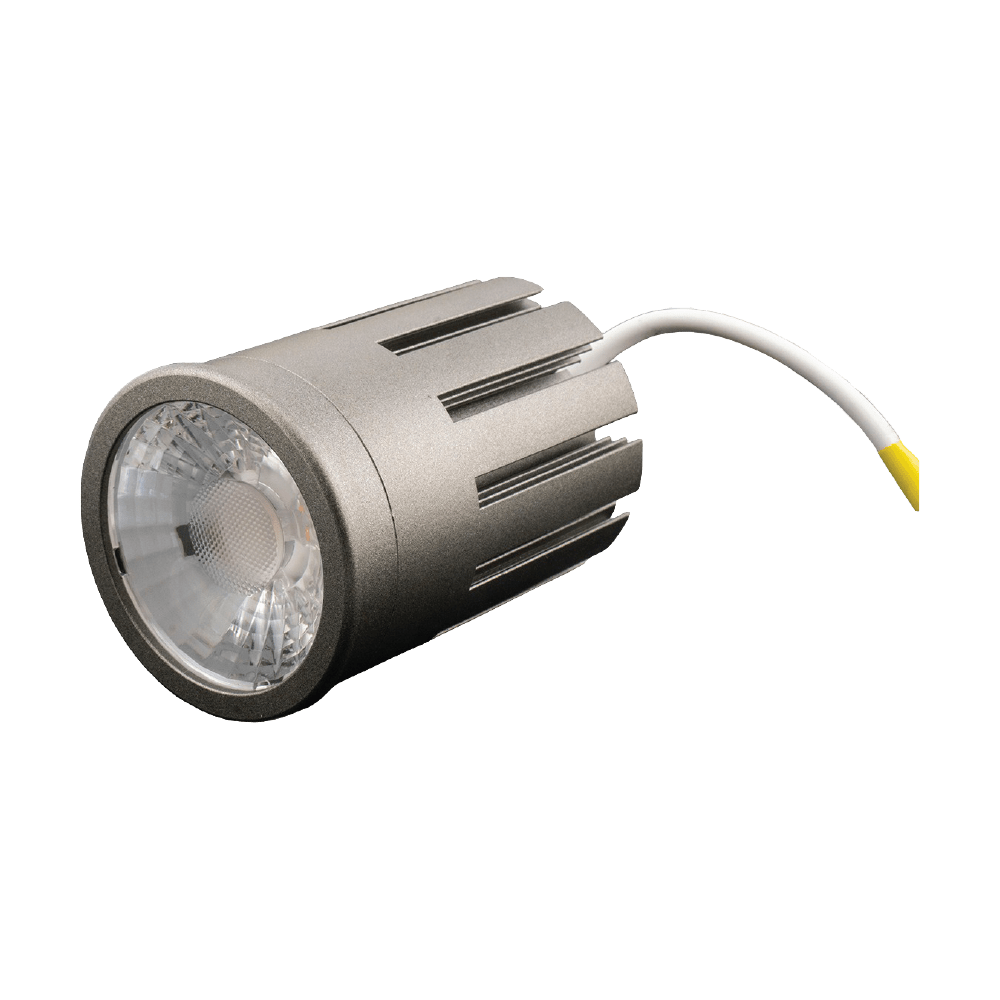

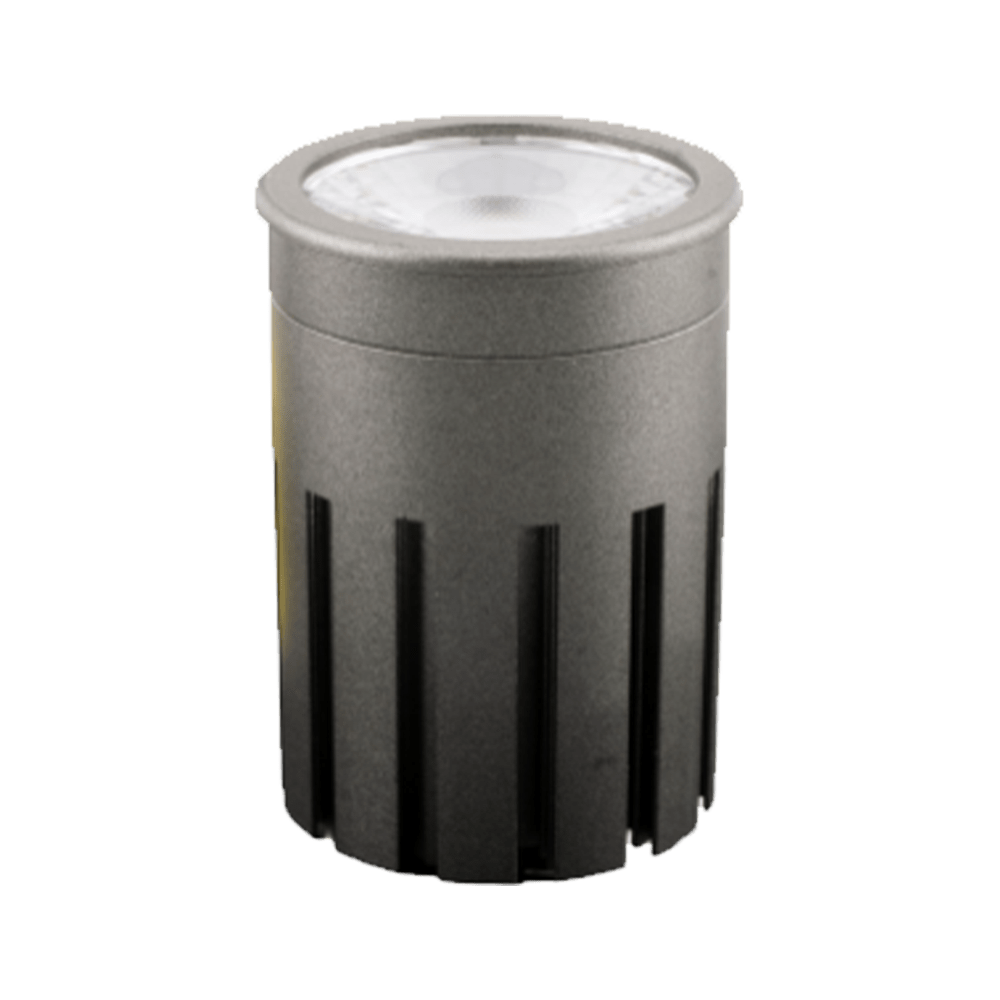

LED COB MODULE 15W 3000K BEAM ANGLE: 24°

LED COB MODULE 15W 3000K BEAM ANGLE: 24°
LED COB MODULE 15W 3000K BEAM ANGLE: 24° - Image 2
LED COB MODULE 15W 3000K BEAM ANGLE: 24° - Image 3
LED COB MODULE 15W 3000K BEAM ANGLE: 24° - Image 4
Item No:500028
Caption The value
Rated Wattage 15 W
Rated current 300 mA
Rated voltage 220-240V
Power Factor > 0.5 Hz
Displacement Factor 0.5
Rated lumens 1350 Lm
Efficiency 90 Lm/w
Lumen Maintenance 3000h
Beam Angle 24°
Color temperature 3000 k
Caption The value
Consistency sdcm <6
CRI >80
Rated lifetime 15000 h
Switch cycle 15000
Ta 45°C
Dimming NO
Width 49.5 ф
Height 70mm
SKU: 500028 Category:

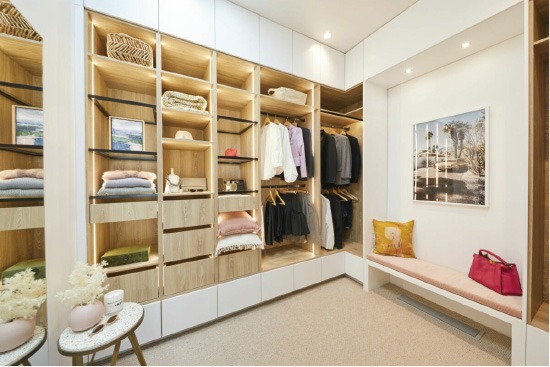

Areas of application:

  • General indoor illumination.
  • Decorative illumination.
  • Private living areas.

Super protection:

  •  It is made of very safe materials,
  • so it is environmentally friendly
  • Provides flexibility in installation
  • and ease of installation.

Places

Suggested Installation Areas

Additional Information

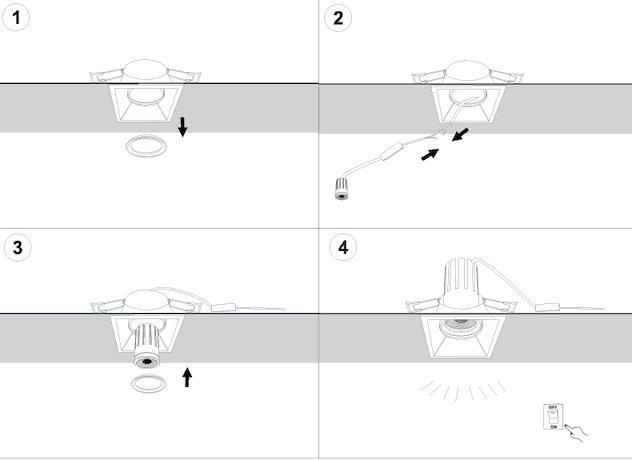

Installation Instructions:

  1. Take off the fixing ring from the Spot Light Fixture.
  2. Connect the LED Module to the main power by the color of the wiresBrown is Live line, and Blue is Neutral line.
  3. Insert the LED Module to the Spot Light Fixture and fix it by fixing ring.
  4. Switch on the power and the light can work normally.
