Item No: 502452
| Caption | The value |
|---|---|
| Rated Wattage | 5 W/m |
| Color Temperature | 3000 K |
| Lumen | 400 Lm/m |
| Beam Angle | 120° |
| Rated Lifetime | 15000 h |
| CHIP QTY/M (Double PCB) | 180*2835 |
| Width | 8 mm |
| Height | 4 mm |
| Roll Length | 5M |
| Dimming | Yes |
LED Strip – design, layers
- Electronics Layer – LEDs, resistors.
- Graphic layer.
- Protective layer – PVC film (86% reflective).
- Conductive layer- flexible copper layer 35µM.
- Insulation layer.
- Power supply layer – flexible copper layer 35µM.
- Protective layer – PVC film.
- Adhesive layer – double-sided adhesive tape.
- Protective liner.
Accessories

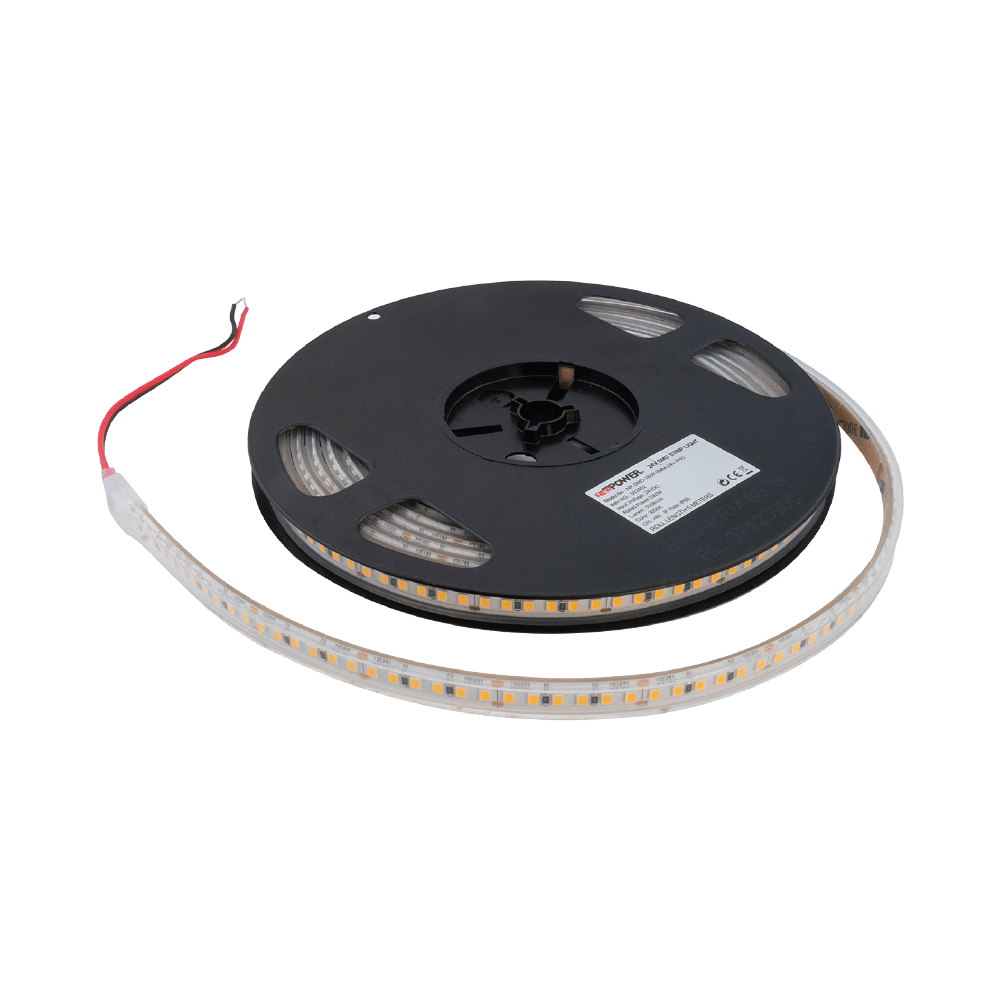

2835-180leds/m 24V LED Strip Light
Additional Information
Areas of application
- General indoor illumination.
- General outdoor illumination.
- Decorative illumination.
- Private living areas.
Super protection
- It is made of very safe materials, so it is environmentally friendly provides flexibility in installation and ease of installation.
Product benefits
- Great scope of design options due to long and flexible LED strips.
- Easy mounting on many smooth surfaces thanks to self-adhesive tape.
- Suitable for use in damp conditions thanks to height type of protection.
- Maximum flexibility due to large range of accessories.
- Simple connection thanks to integrated cables on both sides.
